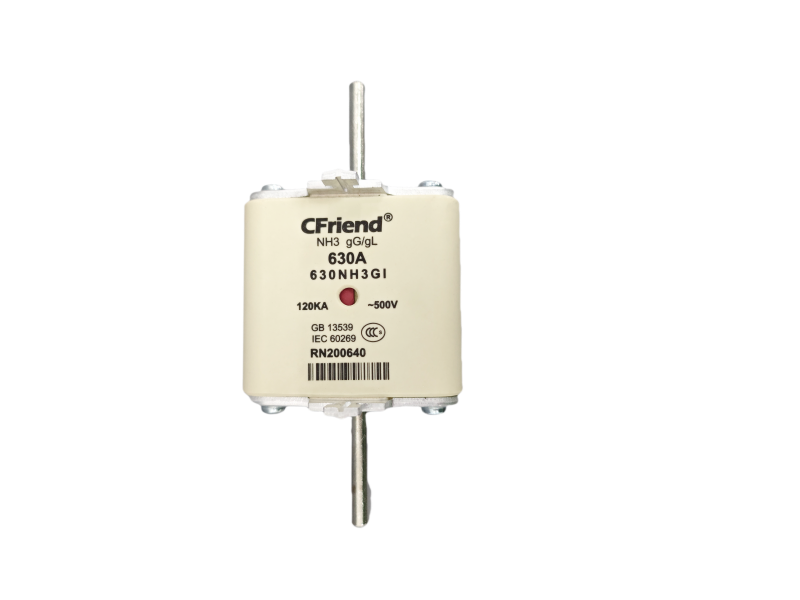

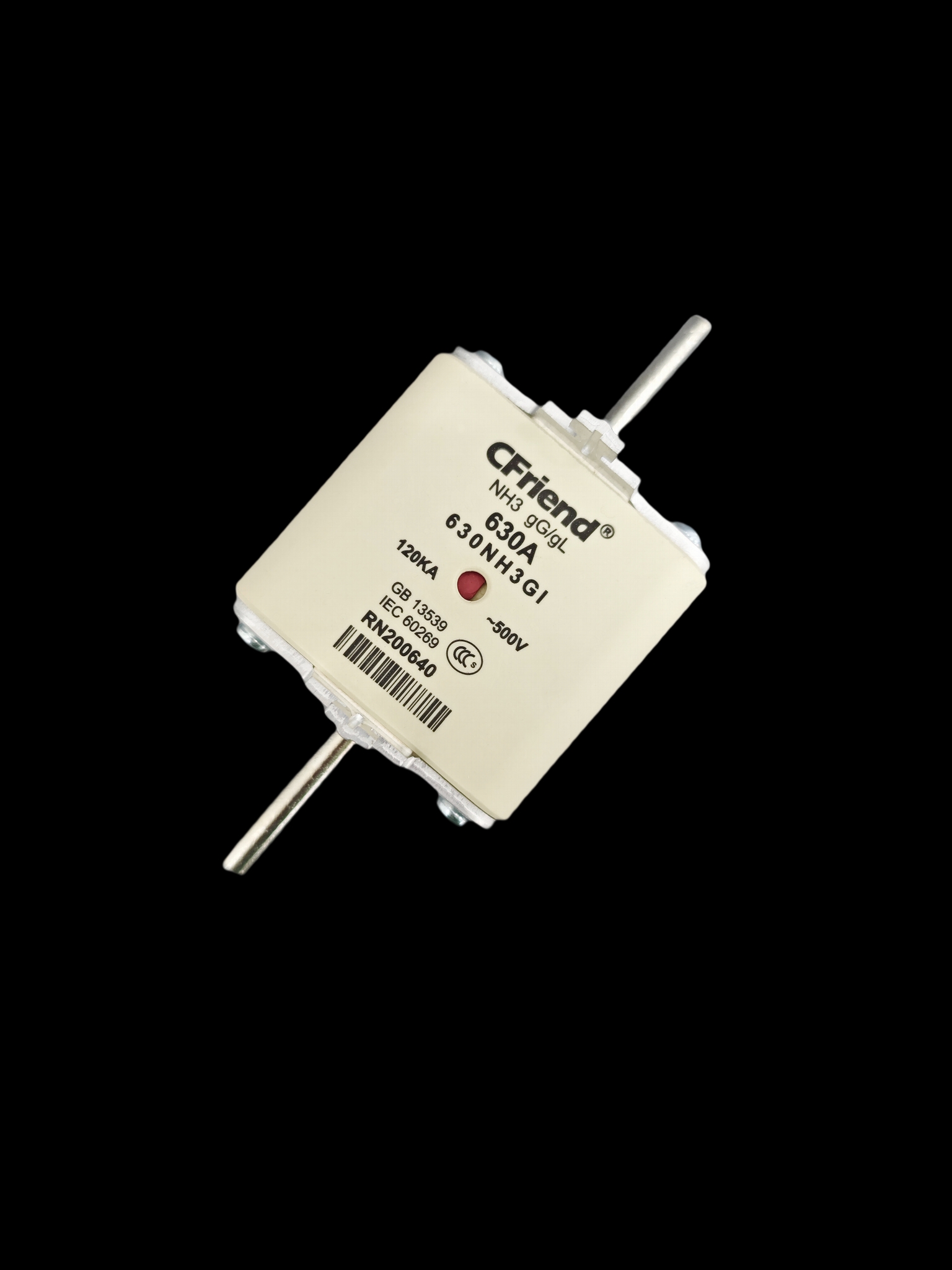

This fuse series is designed for general wire protection with gG characteristic, widely used in overload and short circuit protection of various distribution circuits. Due to it’s small size, high breaking capacity, easy maintenance and replacement, and other advantages, this fuse series has been widely used in power transmission and distribution station, capacitor cabinet, cable branch box, communication power supply, etc.
Rated voltage: 500Vac gG/gL
Rated current: 500-630A
1. High breaking capacity, up to 120kA
2.Rated voltage:500Vac
3.Working frequency 45-62Hz4. Dual display indicator design, unique in China, using thermoplastic materials, beautiful and reliable5. After melting, the resistance between the contacts is high, and the efect is obvious when used on SPD capacitor cabinets6.Unique anti slip and pan head screw design
7. The end cover is made of high-gqualty and high hardness aoy aluminum plate embossed, which has higher strength in one stamping process
